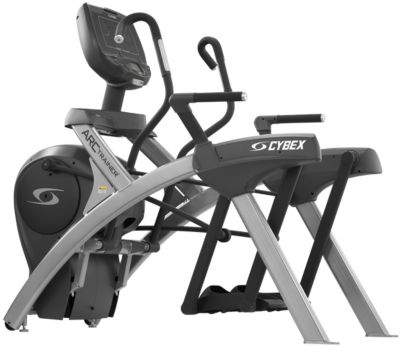

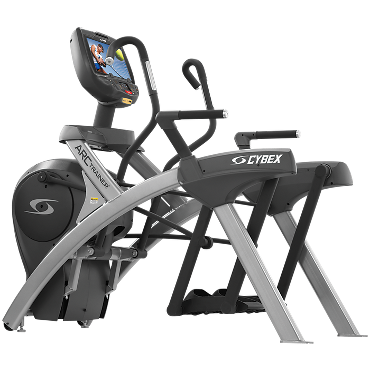

770AT Total Body Arc Trainer

BEST IN CLASS

Arc Trainers

A Commercial High End cross trainer created for the most demanding users in the most demanding environment. The versatility of the Cybex 770AT also makes it the workout of choice for beginning cross trainers – which allows the fitness center owner to purchase one unit to be used by all.

  • Optional Cybex GO Platform. ENTERTAIN. TRAIN. MAINTAIN.
  • Featuring Cybex Muscle Map visual motivator
  • Customized viewing mode for each individual using E3 View
  • Train for Power, Strength and Weight Loss on one machine

Sales Inquiry Download Brochure

Specifications

Product Number : 771AT

Click here for a comparison.

Incline Levels : 21

Stride Length : 24 (61 cm)

Resistance Range : up to 900 Watts

Drive type : Two-stage drive

Brake : Brushless Eddy current brake with generator

Dimensions
(L x W x H) :
76 x 37x 62.5 in
196 x 93 x 159 cm

Machine Weight : 404 lbs (183 kg)

Maximum User Weight : 400 lbs (181 kg)

Power : AC Powered: 115V, 208-220V, 230V
Power Details

Display : 4.3" Touchscreen for Workout and entertainment setup and control
Graphic display of profile via 8 x 15 LED. Numeric display of time distance, calories, calories/hour, METs, watts, strides per minute and heart rate including multi-color indication of heart rate range. Lower display shows incline and resistance level.

Workouts : Quick Start, three Weight Loss, two Cardio, two Shaping, three Strength, as well as Adaptive Power, Constant Power, and Heart Rate Control.

Compliance : ETL listed to UL 1647, FCC Class B, ASTM, EN 957, CE Low Voltage Directive, EMC and ROHS

Convenience Features : Split level display with magazine rack. Water bottle holder, dual utility tray, and dual speed fan.

Heart Rate Monitoring : Contact and wireless. HR light indicator is multi colored with different color light for specific target heart rate zones

Color : Choice of seven standard frame colors (Black Chrome, Nightstorm Black, Cumulus White, Platinum Sparkle, Arctic White, Eclipse Black, Metaltone Gold), premium and exclusive colors, as well as over 180 custom colors.

Languages : 10 languages (English, French, German, Spanish, Japanese, Russian, Swedish, Danish, Dutch, Canadian English)

AV/Ent. : Optional MYE wireless audio receiver.
Optional E3 View embedded HD monitor.
Optional Cybex GO.
Optional iPod/iPhone integration with 30-pin connector. Users can easily charge an iPod or iPhone, listen to music, switch tracks, and control volume.

Connectivity : Made for iPod® Works with iPhone® (optional)

AC Adaptor : AC adapted option provides full time display lighting.

Warranty : 10 yr - frame
3 yr - parts
1 yr - labor
Warranty Details
